Length 1.5m 3m Professonal Rock Drilling Tools for BQ NQ HQ PQ Core Drilling Tubes

Product Categories

KSQ Technologies (Beijing) Co. Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Length 15m 3m Professonal Rock Drilling Tools for BQ NQ HQ PQ Core Drilling Tubes
Brand: MIROC
Price: 1 USD

Brand Name : MIROC

Model Number : BQ Core Drilling Tubes

Certification : ISO

Place of Origin : China

MOQ : 10pcs

Price : negotiable

Payment Terms : T/T, , L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 30000pcs per month

Delivery Time : 15-20 days

Packaging Details : Iron Pallet

Color : Black

Length : 1.5m, 3m

Application : Well Drilling, Ore Mining, Core driling

Package : Iron Pallet

Port of Loading : Tianjin Port

Model : BQ Drill Tubes

Material : Carbon Steel, High Manganese

Processing Type : Forging

Thread Protection : grease paint and Iron plate package covered

Contact Now

Length 1.5m 3m Professonal Manufactuer from China for BQ Core Drilling Tubes

geological steel pipe-entire length thermal treatment, NC lathe with former cutters

Q series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters
Spec.	Unit	BQ	NQ	HQ	PQ
OD/ID	mm	55.6/46	71/60	89/77.8	114.3/101.6
Thickness	mm	4.8	5.5	5.6	6.35
Length	m	1.5 or 3	1.5 or 3	1.5 or 3	1.5 or 3
Weight	kg/m	6.01	8.8	11.51	17.3
thread length	mm	44.45	44.45	44.45	63.5
thread pitch	thread/inch	3	3	3	2.5
box thread tooth height	mm	0.76	0.76	0.76	1.17
pin thread tooth height	mm	0.88	0.88	0.88	1.27
thread tooth angle	.	29	29	29	29
tensile resistance(A series)	kn	400	530	510	565
tensile resistance(B series)	kn	450	615	625	660
bore depth	m	1200	1000	900	800

QR series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters
Spec.	Unit	BRQ	NRQ	HRQ	PRQ
OD/ID	mm	55.6/46	69.9/60.3	88.9/77.8	114.3/101.6
Length	m	1.5 or 3	1.5 or 3	1.5 or 3	1.5 or 3
Weight	kg/m	6.01	8.8	11.51	17.3
thread length	mm	42	42	41.91	63.5
thread pitch	thread/inch	3	3	3	2.5
box thread tooth height	mm	0.76	0.76	0.76	1.17
pin thread tooth height	mm	0.88	0.88	0.88	1.27
thread tooth negative angle	.	5	5	5	5
tensile resistance(A)	kn	450	525	545	565
tensile resistance(B)	kn	530	625.5	602	660
bore depth	m

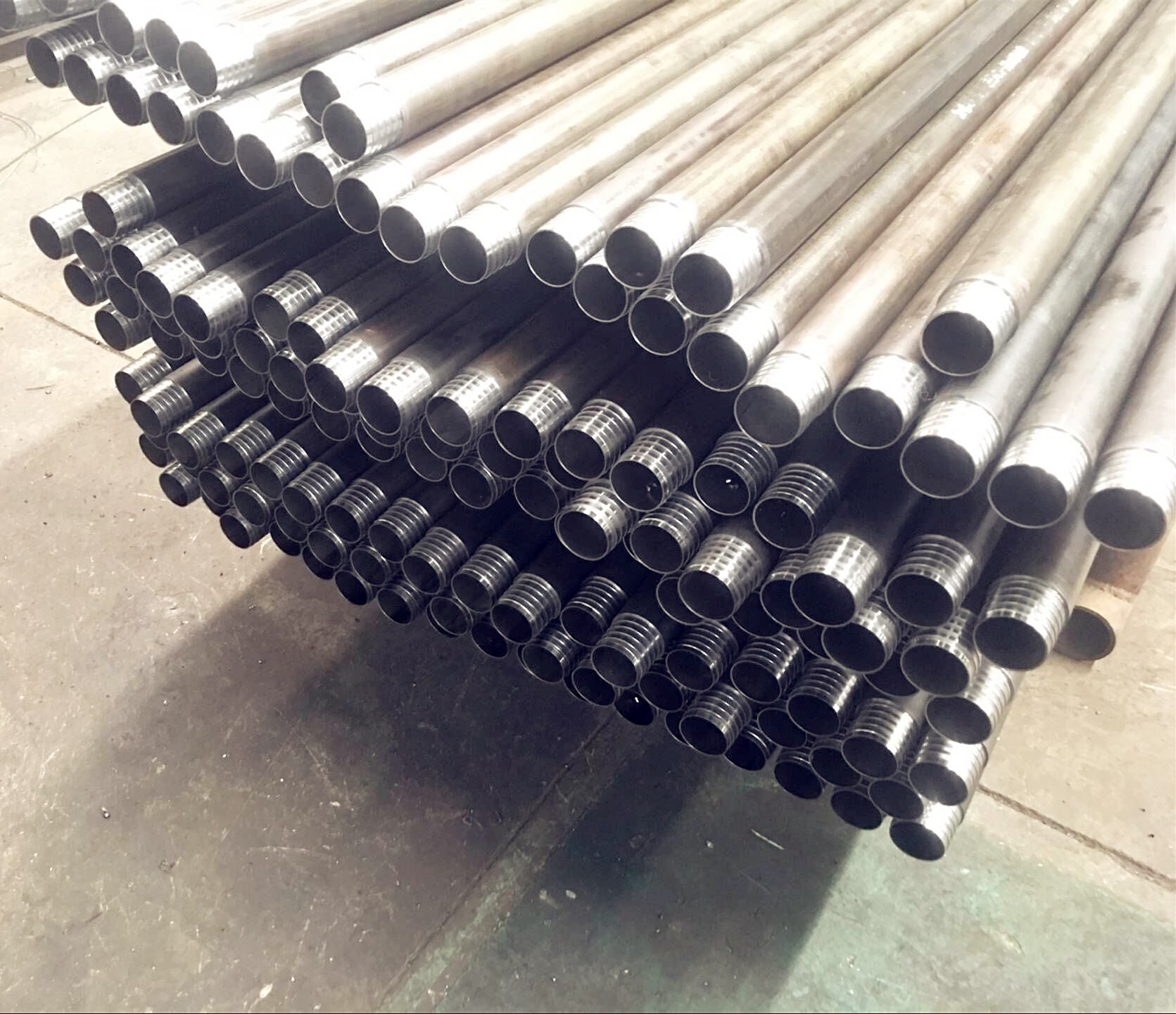

Products Pictures

Length 1.5m 3m Professonal Rock Drilling Tools for BQ NQ HQ PQ Core Drilling Tubes
