Quarrying Rock Drilling Tools Grinding Pins Internal Hexagon Grind Cup For Button Bits

Name: Quarrying Rock Drilling Tools Grinding Pins Internal Hexagon Grind Cup For Button Bits
Brand: MORIC
Price: 17.5 USD

Brand Name : MORIC

Model Number : grind cup for button bits

Certification : ISO API

Place of Origin : china

MOQ : 20

Price : 17.5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : cartons

Size dia. : Size dia.

Bits Dia, : 6-25mm

Type : Grinding Cups

Application : Quarrying, Mining, Engineering

Size : Required

Hardness : Standard

Contact Now

Quarrying Rock Drilling Tools Grinding Pins Internal Hexagon Grind Cup For Button Bits

1). Single-water way is suitable for all insert shapes and all types of grinding machines.

2). The 3-water ways are standard on all grinding cups larger than 14mm. Gives a better redressing result, longer life of the grinding cup.

Model and Specification

There are different models for your choice:

8mm shank model,

9mm shank model,

internal hex drive model, etc..

Our grinding cup can be used for grinding 7mm-25mm button size. Other sizes available on request.

These grinding cups can be used for grinding both the bit button and body steel in one operation.

The combination grinding pin benefits from a specially developed grinding material capable of grinding both carbide and steel at a regular and consistent rate.

For bit's button shape	For bit's button size (mm)
spherical buttons ballistic buttons	6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
bit's body steel removal	7-8 9-10 11-12 13-14 15-16 17-18 19-20

Product Tags:

quarrying rock drilling tools

grind cup rock drilling tools

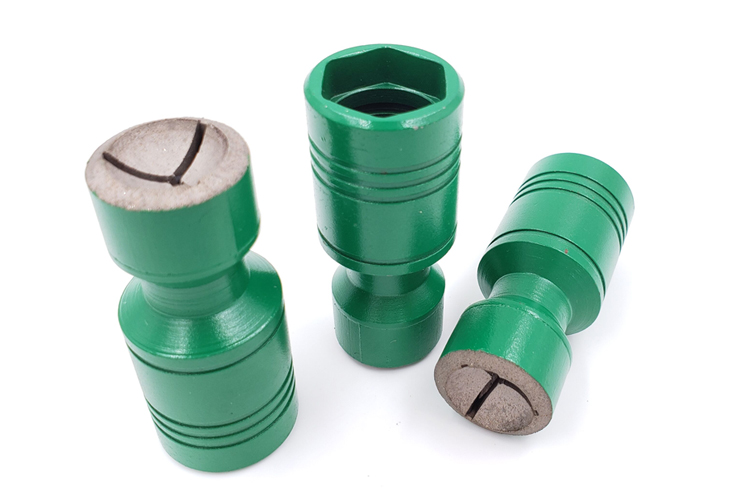

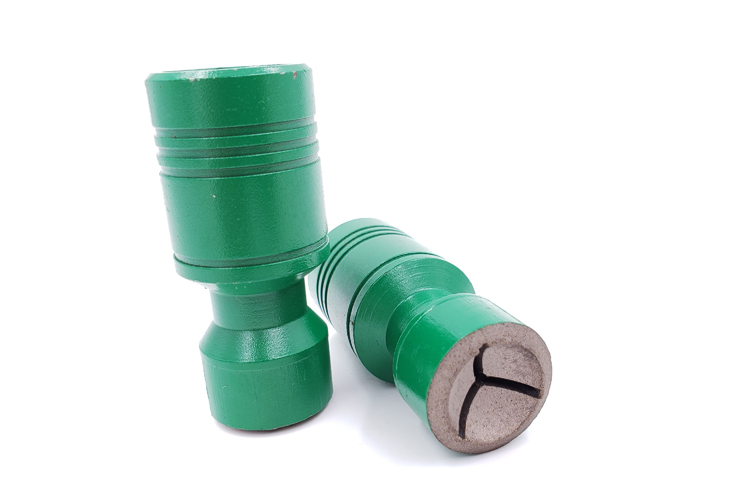

Quarrying Rock Drilling Tools Grinding Pins Internal Hexagon Grind Cup For Button Bits Images
