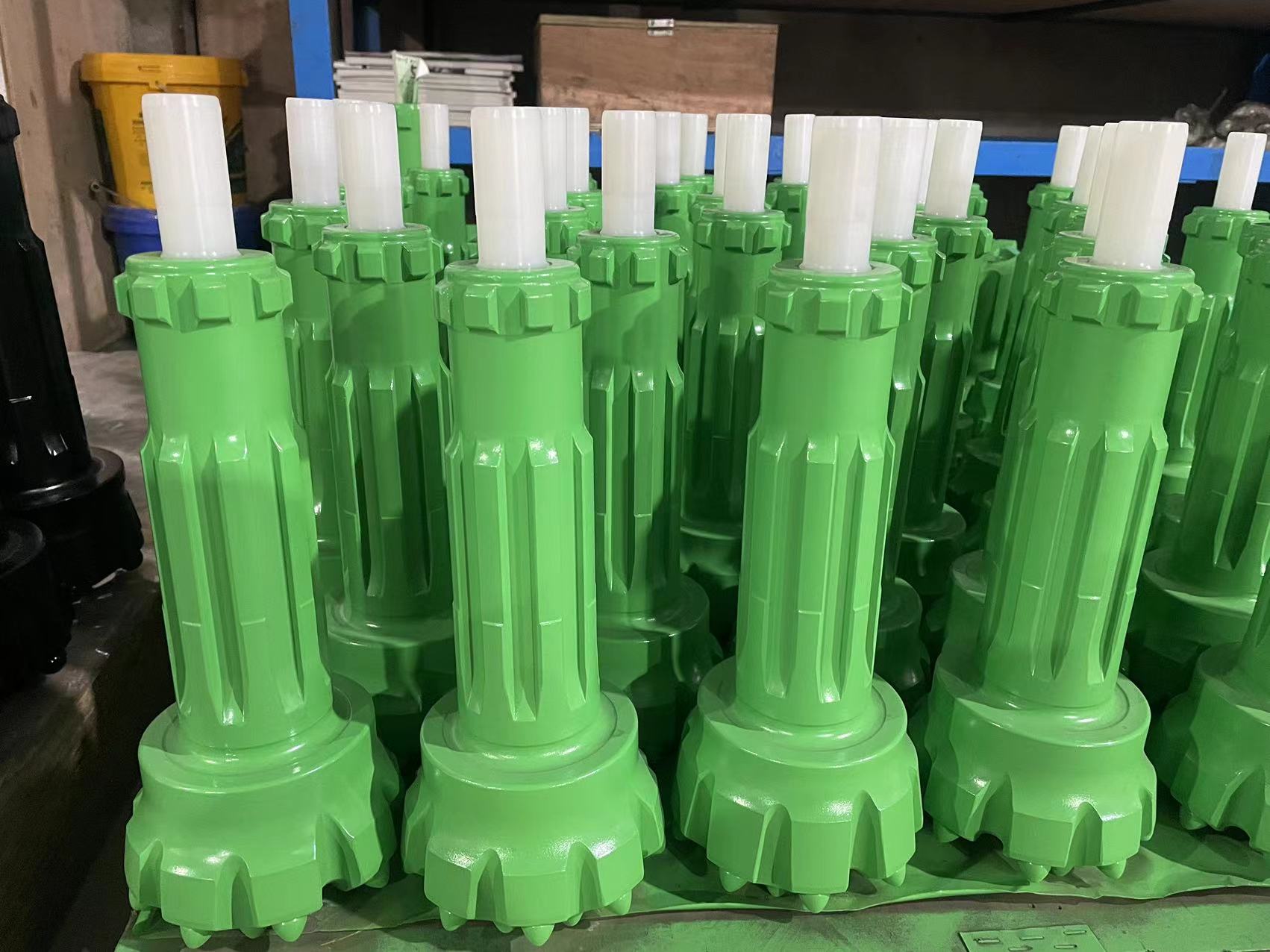

4" 5" 6" 8" Down The Hole Drill Water Well DTH Hammer Bit
Description
DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
• Medium to large size drilling diameters
• Works in high pressure range, capable of drilling deep hole lengths
| Product: | DTH Hammer Bits |
| Color: | Green, Gold, Black or based on customer requirements. |
| Series: | COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc |
| Face: | Flat Face, Concave Face, Convex Face, DGR face |
| Material: | High quality carbide and High quality carbon steel |
| Drill rock type | Granite, Marble, Limestone, Basalt, ect. |
| Project types | Blast holes,/Quarry/Anchoring/Infrastructure/Geothermal holesWell drilling,ect. |
Processing: CNC milling and proprietary heat treatment process
Type: Middle - High Pressure DTH Bits
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Specification
| Diameter | No. x Button Diameter mm | Button Angle | Flushing Hole | Weight(kg) |
| mm | Inch | Gauge Buttons | Front Buttons |
| 105 | 4 1/8 | 6x14mm | 5x13mm | 38° | 2x18mm | 7.5 |
| 110 | 4 5/16 | 7x14mm | 6x13mm | 38° | 2x18mm | 7.85 |
| 115 | 4 1/2 | 7x14mm | 7x13mm | 38° | 2x18mm | 8.5 |
| 120 | 6 1/2 | 8x14mm | 7x13mm | 38° | 2x18mm | 8.8 |
| 125 | 4 3/4 | 8x14mm | 7x13mm | 38° | 2x18mm | 9 |
| 130 | 5 1/8 | 8x14mm | 7x14mm | 38° | 2x18mm | 9.4 |
