R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining

Name: R32 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining
Brand: MIROC
Price: 1 USD

Buy cheap R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining product

Brand Name : MIROC

Model Number : R3225 Threaded Cross Bit

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/P, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability : 30000Pieces/Month

Delivery Time : 25 Days

Packaging Details : Carton Box and Wooden Box

Material : Tungsten Carbide

Color : Blue,Green or Based on Demand

Applications : Mining and Quarring

Design : precise design suit particular needs

Qaulity : stable and reliable

Market : domestic and overseas

Name : R32 Cross drill bit

Contact Now

R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining

Product Specification

Product	R32 Cross type bit
Diameter	43mm
Alloy	16x10mm
Flushing hole No.	Front 1, Side 4
Weight	0.7KG
Color	Glod (customized according to customer needs)

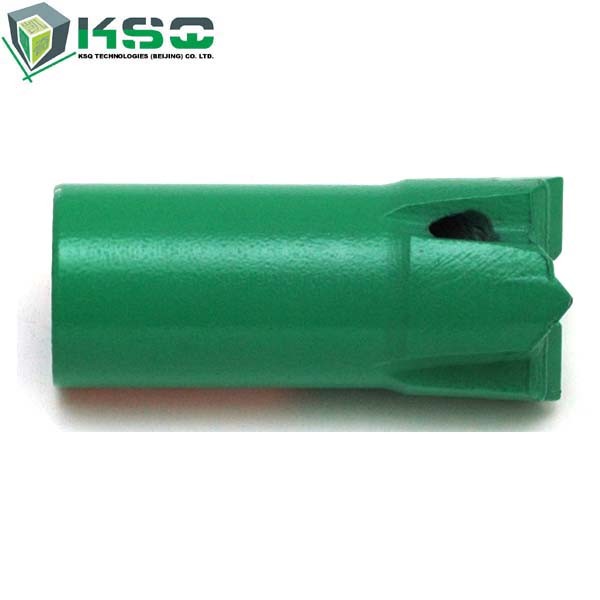

Miroc R32 Cross type bit with steel inserts using thread system. It has a slow penetration rate but it produces a very straight drill hole.
• Steel inserts
• Widely used in dimensional stone industry, drifting and tunneling

Cross Type Bit parameter

R32

Cross Tye Bits R25(1") R28(1 1/8")	Diameter		Button(mm)	Thread	Part No.
	mm	inch	Weight*Height	Thread	Part No.
	45	1 3/4"	16*10	R32
	48	1 7/8"	16*10	R32
	51	2"	16*10	R32
	57	2 1/4"	16*10	R32
	64	2 1/2"	16*10	R32
	76	3"	16*10	R32

H25

Cross Tye Bits H25	Diameter		Button(mm)	Flushing Holes		Part No.
	mm	inch	LengthxWidthxHeight	Side	Front	Part No.
	35	1 3/8"	13812	4	1
	38	1 1/2"	14812	4	1
	41	1 21/32"	15812	4	1
	45	1 49/64"	17812	4	1
	48	1 57/64"	17814	4	1
	51	2"	191016	4	1
	57	2 1/4"	221016	4	1
	64	1 33/64"	241016	4	1
	76	3"	291220	4	1

R25/R28

Cross Tye Bits R25(1") R28(1 1/8")	Diameter		Button(mm)	Thread	Part No.
	mm	inch	Weight*Height	Thread	Part No.
	35	1 3/8"	14*8	R25
	38	1 1/2"	14*8	R25
	41	1 5/8"	14*8	R25
	43	1 11/16"	14*8	R25
	38	1 1/2"	14*8	R28
	43	1 11/16"	14*8	R28
	45	1 3/4"	14*8	R28

The Feature of R32 Cross Bit

1.The R32 threaded cross bit & Button Bit connect with R32 threaded drill rod perfectly for drilling holes
2.Stale and mature welding technology ensure high quality of bits
3.work reliable and very cost-effective

4.High grade tungsten carbide inserts
5 Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

MIROC® Rock Drilling and Ground Support Tools include:

Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers

R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining
