Mining Operations Tungsten Carbide R25 Drifter and Speed Drill Rods

Brand Name : KSQ

Model Number : Drilling and Tunneling Drill Rod

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000 Pieces Per Month

Delivery Time : 25 days

Packaging Details : Carton or Wooden Box

Certification : ISO

Types : Drifter rod, Extension Rod, Speed Rod

Flushing Hole : 8.6 mm

Thread Model : R25

Diameter, mm : 25

Material : Tungsten carbide and high strength alloy steel

Colors : Green, Black, yellow or Based on request

MOQ : 1 PCS

Application : Mining operations, Tunneling, Quarrying, Construction

Contact Now

Mining Operations Tungsten Carbide R25 Drifter and Speed Drill Rods

Product Description :

Drill Rod	Length, mm	Diameter, mm	Weight, kg
Drifter Rod, R32-Hex25-R25 Flushing Hole 8.6mm	2100	25	8.6
	2400		9.6
	2600		10.4
	2800		11.1
	3090		12.2
	3700		14.6

Mining Operations Tungsten Carbide R25 Drifter and Speed Drill Rods

Drill Rod	Length, mm	Diameter, mm	Weight, kg

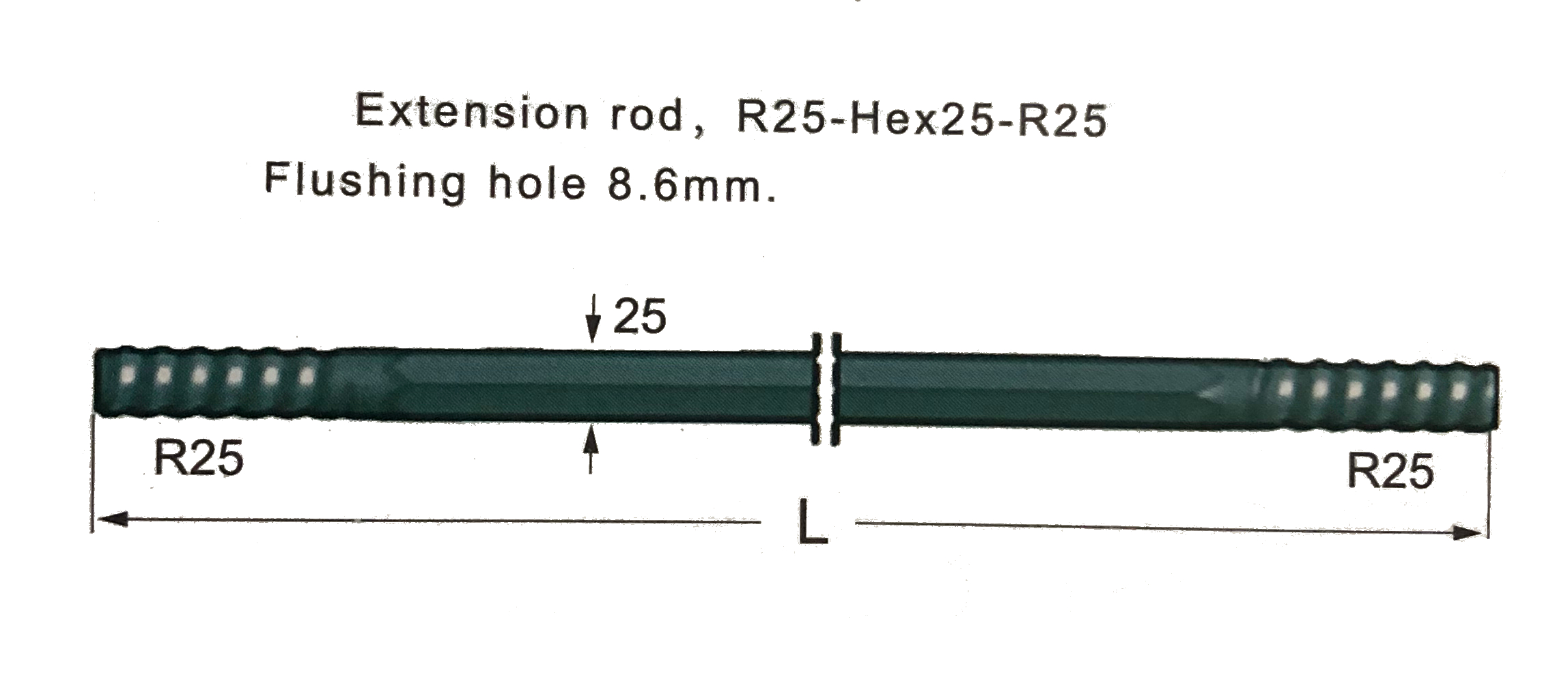

Extension Rod, R25-Hex25-R25 Flushing Hole 8.6mm	915	25	3.4
	1000		4.0
	1220		4.6
	1525		5.8
	1830		7.0
	2435		9.3
	3050		12.0

Mining Operations Tungsten Carbide R25 Drifter and Speed Drill Rods

Drill Rod

Length, mm

Diameter, mm

Weight, kg

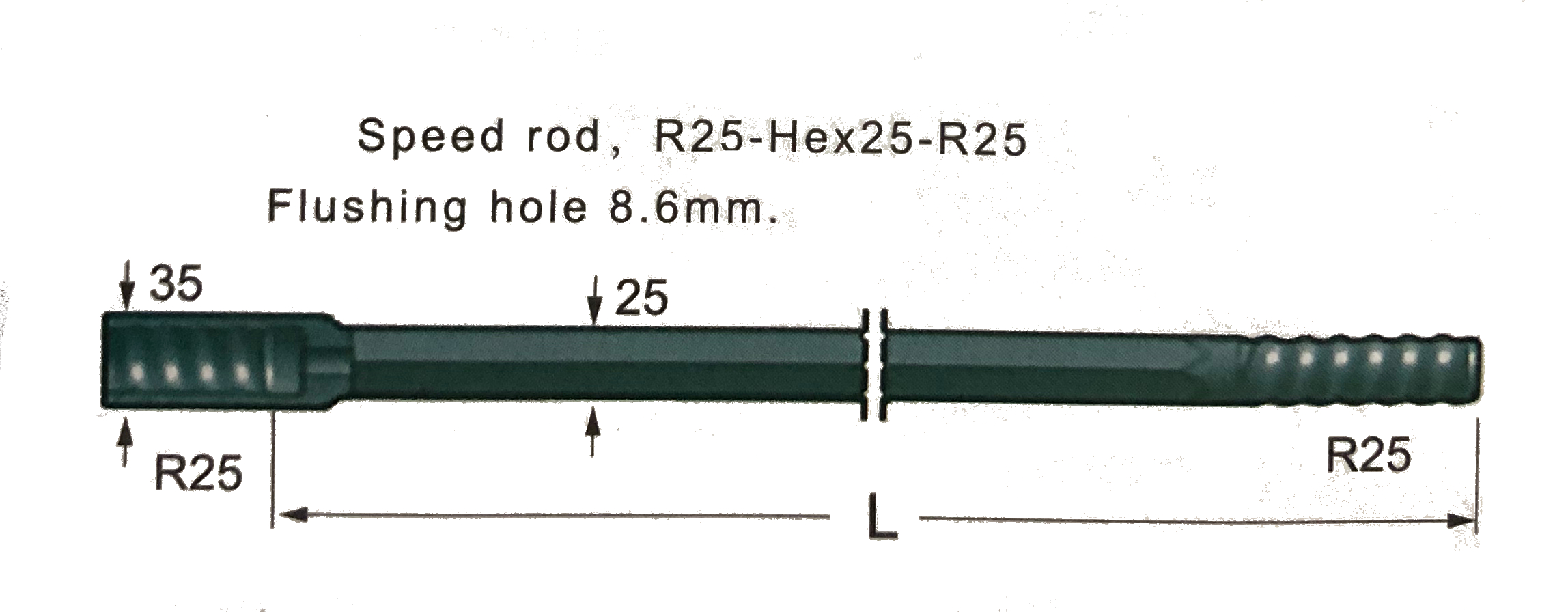

Speed Rod, R25-Hex25-R25

Flushing Hole 8.6mm

610

2.7

1220

5.1

Mining Operations Tungsten Carbide R25 Drifter and Speed Drill Rods

Drill rod using thread system. With wrench flats to aid in coupling/decoupling of rods for extension drilling.

For speed rod, it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system.

Features:

1. High grade raw material
2. Manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Application:

1. Underground mining and surface mining
2. Drifting, bench and production drilling

3. Granite, basalt, limestone rock etc.

Mining Operations Tungsten Carbide R25 Drifter and Speed Drill Rods

Delivery time is around 15-25 days.

Package: Carton or Wooden Box; also we can follow customers requirements.

P.S. We can design and manufacture according to customers’ requirements of the bit diameter, number of air holes and carbide button shape.
