COP35/DHD3.5 Hammer
High Air Pressure DTH Hammer with Foot Valve
COP35 (DHD3.5) DTH Hammer
Air distribution of 3” hammer with the valve to utilize bit without blow tube.
DHD3.5 DTH Hammer Structure
| Replacement Parts | Part Number |
| 1 | Top sub | | DHD3.5-01 |
| 2 | O-ring of top sub | | DHD3.5-02 |
| 3 | Breakout Ring | | DHD3.5-03 |
| 4 | Check Valve | | DHD3.5-04 |
| 5 | Spring | | DHD3.5-05 |
| 6 | Compression Buffer | | DHD3.5-06 |
| 7 | Air Distributor | | DHD3.5-07 |
| 8 | Internal cylinder | | DHD3.5-08 |
| 9 | Piston | | DHD3.5-09 |
| 10 | External cylinder | | DHD3.5-10 |
| 11 | Guide sleeve | | DHD3.5-11 |
| 12 | O-ring of stop ring | | DHD3.5-12 |
| 13 | Stop ring | | DHD3.5-13 |
| 14 | Breakout ring | | DHD3.5-14 |
| 15 | Drive chuck | | DHD3.5-15 |
| 16 | Drill bit | | DHD3.5-16 |
DHD3.5 Hammer Technical Parameters
| Drilling Diameter(mm) | Hammer Length Without Bit(mm) | External Diameter(mm) | Weight Without Bit(kg) |
| φ90-φ110 | 930 | 82 | 25 |
| Working Pressure(Mpa) | Air Consumption(m³/min) |
| 1.0-1.5 Mpa | 1.0Mpa: 4.5 m³/min | 1.5Mpa: 9.0 m³/min | |
| Impact rate at 17 bar | Recommended Rotation Speed | Connection Rod Thread | Bit Shank |
| 28HZ | 25-40 r/min. | API 2 3/8'' Reg | DHD3.5 |
DTH Hammer Features:
1. The operating air pressure is between 0.7 MPa and 1.75 MPa.
2. Valveless hammers.
3. Simple structure, easy to assemble and to disassemble, long life span.
4. Higher impact frequency and faster drilling speed.
5. Lower air consumption and lower oil consumption. A hole can be drilled on the check valve to provide more efficient cuttings discharge.
6. Especially suitable for quarrying.

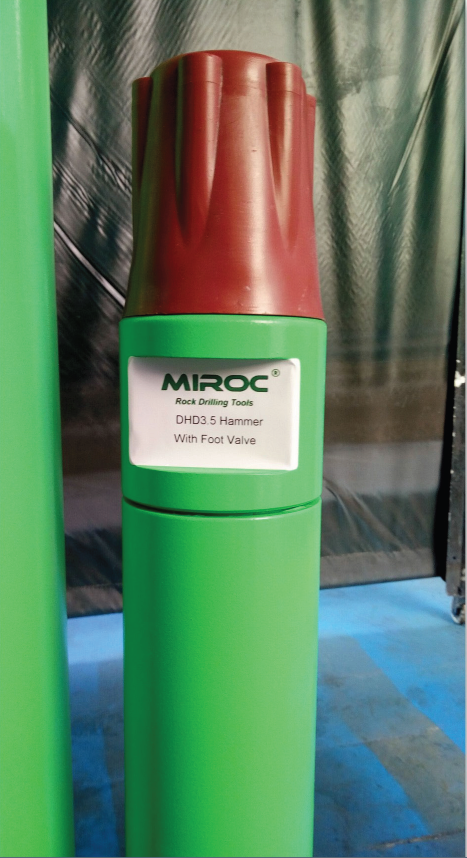

DHD3.5 DTH Hammer Photo:
