600mm To 8000mm H22 H25 Tapered Drill Rod For Small Hole Rock Drilling

  • 1
  • 2
  • 3

Brand Name : MIROC

Model Number : Hex Tapered Rod

Certification : ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Supply Ability : 20000pcs per month

Delivery Time : 15-20 days

Packaging Details : Standrad export packaging or customized

Material : Alloy Steel

Shank : H22x108mm, H25x159mm

Type : Tapered Drilling Tools

Length : 600mm-8000mm

Usage : Small Hole Drilling

Color : Black or customised

Bit Dia. : 22mm (7/8"), 25mm (4 1/4")

Advantage : OEM

Processing type : Forging

Tapered Degree : 7, 11, 12 Degree

Contact Now

Description

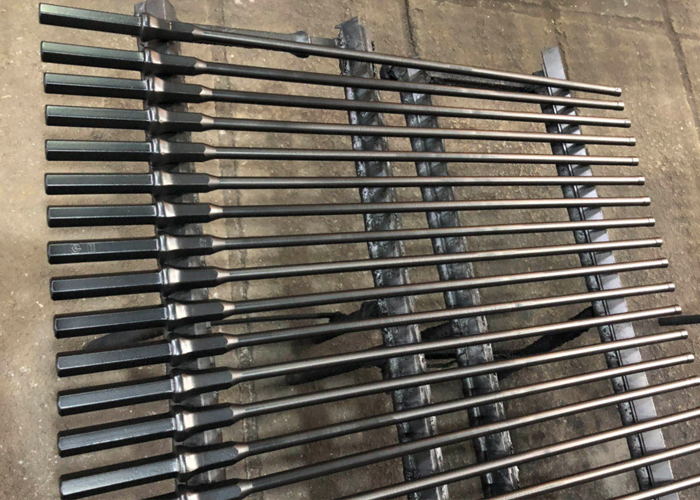

Tapered drill rod,another name called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end.


Applications
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling


Specification

Hex Tapered Rod Length Weight Product Code
mm ft kg
7° Hex Tapered Rod Shank 22x108mm (7/8"x4 1/4") 600 2 1.93 H22-7D-600
800 2 5/8 2.54 H22-7D-800
1000 3 2/7 3.15 H22-7D-1000
1200 3 8/9 3.76 H22-7D-1200
1500 4 8/9 4.68 H22-7D-1500
1600 5 1/4 4.98 H22-7D-1600
1800 5 8/9 5.59 H22-7D-1800
2000 6 5/9 6.2 H22-7D-2000
2200 7 2/9 6.81 H22-7D-2200
2300 7 5/9 7.12 H22-7D-2300
2400 7 7/8 7.42 H22-7D-2400
2500 8 1/5 7.73 H22-7D-2500
2600 8 5/9 8.03 H22-7D-2600
3000 9 5/6 9.25 H22-7D-3000
3500 11 1/2 10.78 H22-7D-3500
4000 13 1/8 12.3 H22-7D-4000
4500 14 3/4 13.83 H22-7D-4500
5000 16 2/5 15.35 H22-7D-5000
5500 18 16.88 H22-7D-5500
6000 19 2/3 18.3 H22-7D-6000
7° Hex Tapered Rod Shank 25x159mm (1"x6 1/4") 4000 13 1/8 16.1 H25-7D-4000
4700 15 3/7 18.9 H25-7D-4700
5000 16 2/5 22.1 H25-7D-5000
5500 18 22.1 H25-7D-5500
6000 19 2/3 24.1 H25-7D-6000
Hex Tapered Rod Length Weight Product Code
mm ft kg
11° Hex Tapered Rod Shank 22x108mm (7/8"x4 1/4") 610 2 2.2 H22-11D-610
1220 4 4.1 H22-11D-1220
1830 6 5.9 H22-11D-1830
2000 6 5/9 6.4 H22-11D-2000
2435 8 7.8 H22-11D-2435
2600 8 5/9 8.3 H22-11D-2600
3200 10 1/2 10.1 H22-11D-3200
3655 12 11.5 H22-11D-3655
4000 13 1/8 12.6 H22-11D-4000
4800 15 3/4 14.9 H22-11D-4800
5600 18 3/8 17.4 H22-11D-5600
6400 21 19.8 H22-11D-6400
7200 23 5/8 22.2 H22-11D-7200
8000 26 1/4 24.6 H22-11D-8000
Hex Tapered Rod Length Weight Product Code
mm ft kg
12° Hex Tapered Rod Shank 22x108mm (7/8"x4 1/4") 610 2 2.2 H22-12D-610
1220 4 4.1 H22-12D-1220
1830 6 5.9 H22-12D-1830
2000 6 5/9 6.4 H22-12D-2000
2435 8 7.8 H22-12D-2435
2600 8 5/9 8.3 H22-12D-2600
3200 10 1/2 10.1 H22-12D-3200
3655 12 11.5 H22-12D-3655
4000 13 1/8 12.6 H22-12D-4000
4800 15 3/4 14.9 H22-12D-4800
5600 18 3/8 17.4 H22-12D-5600
6400 21 19.8 H22-12D-6400
7200 23 5/8 22.2 H22-12D-7200
8000 26 1/4 24.6 H22-12D-8000
12° Hex Tapered Rod Shank 25x159mm (1"x6 1/4") 1830 6 7.96 H25-12D-1830
2435 8 10.38 H25-12D-2435
3050 10 12.84 H25-12D-3050
3655 12 15.26 H25-12D-3655
3965 13 16.5 H25-12D-3965
4270 14 17.72 H25-12D-4270
4880 16 20.16 H25-12D-4880
5530 18 1/7 22.76 H25-12D-5530
6095 20 25.02 H25-12D-6095
