Three Wings Forging Pdc Drag Drill Bit For Oil Well Drilling

  • 1
  • 2
  • 3

Brand Name : MIROC

Model Number : 3 Wings PDC Drill Bit

Certification : ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Supply Ability : 7000pcs per month

Delivery Time : 15-20 days

Packaging Details : Standrad export packaging or customized

Material : PDC cutters and steel body

Wings : 3, 4,5,6 wings

Connection : API Reg. Pin

Drilling Formation : Soft-Medium Hard Rock Formation

Gauge Protection : Yes

Processing Type : Forging

Bearing : Ruber sealed bearing or metal sealed bearing

Application : Oil, Gas Wells Drilling

Color : Golden, Blue, Green or Customized

Origin : Hebei, China

Contact Now

High Quality Three Wings PDC Drag Drill Bit for Oil Well Drilling

Despription
Diamond PDC bits work across an extended range of weight on bit, penetrating quickly even at low bit weights in softer rock. When formations firm up, the bits can take added weight with a smooth torque response and maintain higher than competitive rates of penetration. The technology is a departure from traditional plural set bits that require higher weights to drill even in soft rock, and are generally durable, but slow, even in harder rock. Traditional plural set bits also can produce an erratic torque response when taking additional weight.

"This innovative design allows operators to recognize drilling efficiencies through
Increased rates of penetration.
Enhanced Stability.
Optimum product durability."



Specification

Size

(Inch)

Size

(mm)

 Std. API thread

Approximate weight

(kgs)
2-3/8 60 Non-std. 1.3
2-1/2 63.5 Non-std. 1.5
3 76 Non-std. 2
3-1/2 89 Non-std. 3.5
3-7/8 98.4 2-3/8" 5
4 102 2-3/8" 5.5
4-1/4 108 2-3/8" 6.5
4-5/8 117.5 2-7/8" 8
5-1/4 133 2-7/8" 11
5-5/8 142.9 3-1/2" 13
5-7/8 149.2 3-1/2" 14
6 152 3-1/2" 17
6-1/8 155.6 3-1/2" 18
6-1/4 159.3 3-1/2" 20
6-1/2 165 3-1/2" 22
7-1/2 190.5 4-1/2" 31
7-5/8 193.7 4-1/2" 32
7-7/8 200 4-1/2" 35
8-1/2 215.9 4-1/2" 42
8-5/8 219 4-1/2" 44
8-3/4 222.3 4-1/2" 45
9-1/2 241.3 6-5/8" 60
9-5/8 244.5 6-5/8" 65
9-3/4 247.7 6-5/8" 70
9-7/8 250.8 6-5/8" 75
10-5/8 270 6-5/8" 82
11-5/8 295 6-5/8" 90
12-1/4 311.2 6-5/8" 98
13-5/8 346.1 6-5/8" 134
15-1/2 394 6-5/8" 190
16 406.4 6-5/8" 200
17-1/2 444.5 7-5/8" 251
20 508 7-5/8" 300
24 610 7-5/8" 600
26 660.4 7-5/8" 700

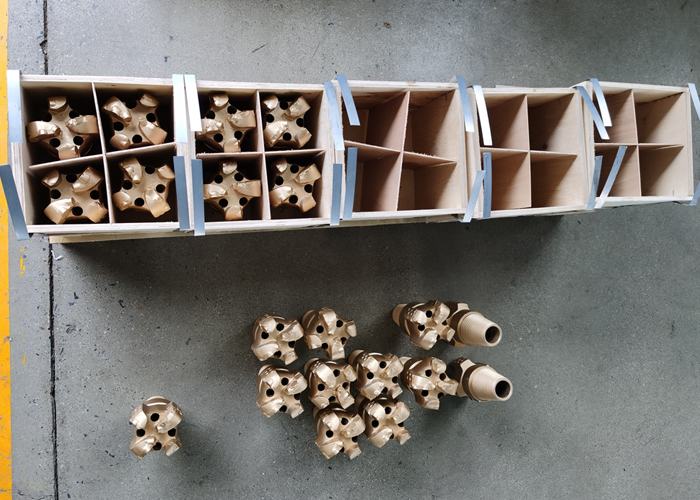

Three Wings Forging Pdc Drag Drill Bit For Oil Well Drilling

Three Wings Forging Pdc Drag Drill Bit For Oil Well Drilling
