Mining Rock Drilling Tools HL 1000 PE-65 / Threaded Shank Adapter Drills
GT60 Shank Adapter Description

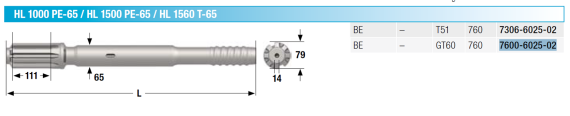

GT60, diameter: 65mm, length: 760mm for HL 1000 PE-65 / 1500 PE-65 / HL 1560 T-65, equivalent to P/N 7600-6025-02
Weight around 20kg/each
Shank Adapter for Following Rock Drill Model
| Rock Drill Manufacturer and Model |
| HL 1000-60 |
| HL 1000-80, Shoulder drive |
| HL 1000 PE-65 / HL 1500 PE-65 / HL 1560 T-65 |
| HL 1500 T-80, Shoulder drive |
| HL 1500 SPE-90 Tube drilling |
GT60 Shank Adapter Specification
| Rock Drill Manufacturer and Model | Thread | Diameter | Length | Flushing |
| mm | mm |
| /HL 1000-60 | GT60 | 60 | 670 | - |
| HL 1000-80, Shoulder drive | GT60 | 80 | 670 | - |
| HL 1000 PE-65 / HL 1500 PE-65 / HL 1560 T-65 | GT60 | 65 | 760 | - |
| HL 1500 T-80, Shoulder drive | GT60 | 80 | 760 | |
| HL 1500 SPE-90 Tube drilling | GT60 | 90 | 760 | - |
Rock drill categories:
BE = bench drilling
BO = bolting
DS = dimensional stone drilling
PD = production drilling underground (long hole drilling)
TU = drifting and tunneling
Competitive Advantage
- High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
- Accurate dimension of thread perfectly matches the rock drill
- Work reliable and very cost-effective
Application
• Bench drilling
We can design and manufacture the personalized products to meet your specical apllication, such as changing the length, diameter etc.
